Printed Top Paper Flute Laminating Machine , Semi Automatic Laminator For Carton Box

Printed Top Paper Flute Laminating Machine , Semi Automatic Laminator For Carton Box

I. General introduction

Flute laminating machine is used in packaging field. For high quality corrugated cartons making.

This machine is used for making printed paper and bottom paper(card paper, corrugated paper) match together accurately, then the paper level off, and high precision. Usually for the high quality cartons, the top surface paper is printed by offset machinery so the patterns is very clear and beautiful. Surface paper quality also is high grade. So use laminating machine to paste the high quality surface paper on the bottom paper to make cartons be very delicate.

II. Major feature

The high speed, high accurate flute laminate which developed by our Company is the most advanced in our country. This machine operation is stable, joint accurate, easy operation, need not skilled workers.

1. Feeding of high table, automatic feeding for bottom sheet, elastic front register, simple operation.

2. Just need one person to feed the paper. It has low request to paper, suitable for laminating paperboard to bottom paperboard, A/B/C/E Flute corrugated cardboard. Even filmed paper can be laminated.

3. Top sheet forwarded by manual on high table and the sheet can be piled up to 1.8m.

4. Bottom sheet is automatically fed; the two sheets are piled freely; High efficiency
5. Advanced elastic front register is used for location, high register precision, bottom paper will never exceed. When laminating, it is very easy to make top paper and bottom paper alignment, or top sheet exceeded.
6. Fully automatic glue supply system: glue will be automatically supplied during lamination, and recovered, avoiding glue wasted.
7. Scientific design for linear speed of metering roller, avoiding glue thrown when high-speed running.
7. The whole machine adopts PLC control system, compared with other time-delay device or middle relay control, the bottom paper is transferred more precise and stable, furthermore, speed is greatly increased, and circiut breakdown can Balance-tested rollers display and alarm.
8. Clean the lower roller in gluing section by blade with circulated water, complete cleaning, convenient to replace the blade
9. Floating movable pressing section is adopted to make the laminated paperboard smooth. This section can be moved front and back to take in paper conveniently.

10. Gear rach is used to control the lift of water tray, which is easily taken out for cleaning.

III. Technological parameter

automatic flute laminator

auto feed laminator

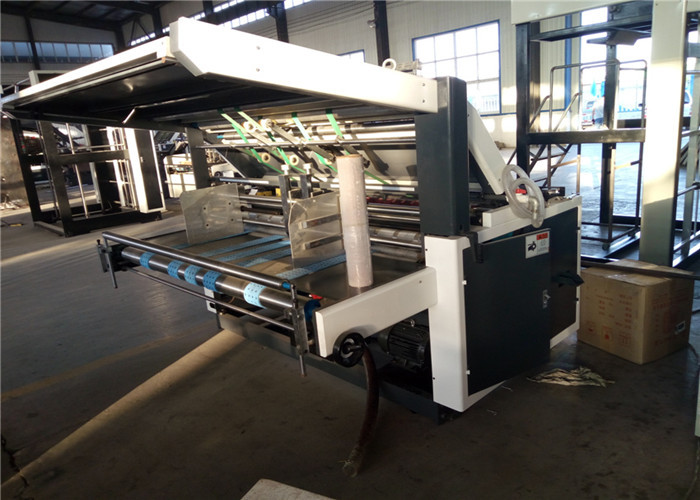

Printed Top Paper Flute Laminating Machine , Semi Automatic Laminator For Carton Box Images
